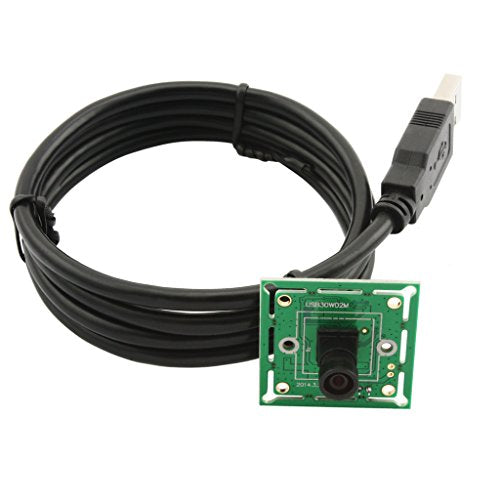

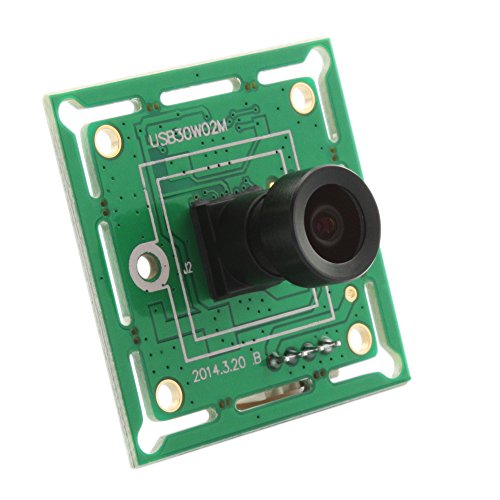

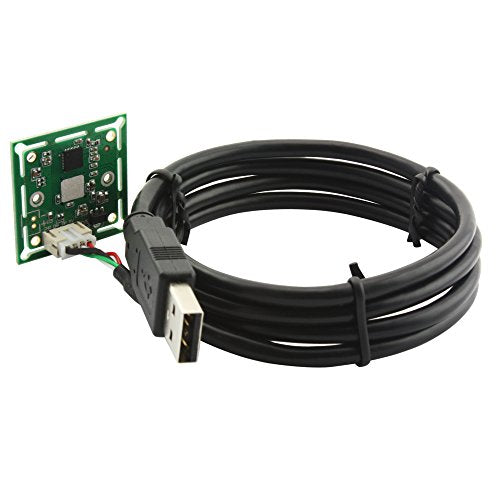

VGA Super Mini VGA USB Camera Module with 100degree Lens

-USB30W02M-MHV100 is a Mini Size (32*32/26*26mm) 640X480 VGA usb camera with M7 100 degree wide angle Lens Specification: Sensor OV7725 Lens Size 1/4 inch Pixel Size 6.0um X 6.0um image area 3984m x 2952m Max. Resolution 640(H)X480(V) Compression format MJPEG / YUV2YUYV Resolution & frame 640X480 MJPEG@ 60fps YUY2@ 30fps 480X480 MJPEG@ 30fps YUY2@ 30fps 450X450 MJPEG@30fps YUY2@ 30fps 352X288 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@ 30fps 240X240 MJPEG@ 30fps YUY2@ 30fps S/N Ratio 50dB Dynamic Range 60dB Sensitivity 3.8V/lux-sec@550nm Mini illumination 0. 2lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video ClassUVC AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure Lens Parameter Standard M7 LENS FOV(D)138 (H)100 Degree Night vision Need to equipped IR Sensor Lens and IR LED Board LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Power supply DC5V Operating Voltage 100mA~160mA Working current -1070 Working temperature -2085 Board size /Weight 32X32mmCompatible 26X26mm/ about 30g Cable Standard 1M Operating system request WinXP/Vista/Win7/Win8 Linux with UVCabove linux-2.6.26 MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC
