Introducing the versatile Signal Generator Module, your ultimate tool for generating precise square and rectangular waveforms across a wide frequency spectrum. Designed for both hobbyists and professionals, this compact module operates on a power supply range of 5V to 12V DC, making it adaptable for various applications. With a current output of approximately 10mA at 5V and 30mA at 12V, it ensures reliable performance for your projects.
This innovative module features five selectable frequency bands, allowing you to easily switch between frequencies ranging from a low 0.6Hz to a high of 180kHz. The frequency bands are conveniently accessed via jumper caps, enabling quick adjustments to suit your specific needs. Whether you require low-frequency signals for audio applications or high-frequency outputs for RF projects, this module has you covered.
The adjustable duty cycle, ranging from 0.4 to 0.99, provides further customization, allowing you to fine-tune your waveforms for optimal performance. An integrated LED output indicator offers real-time feedback, with the LED flashing speed corresponding to frequency changes, ensuring you can monitor your settings at a glance.
With a compact size of 20mm x 40mm, this module is easy to integrate into your existing setups. The output voltage varies between 4.2V and 11.4V peak, depending on your supply voltage, providing flexibility for different applications. The included output frequency calculation formula (T = 0.7 * Ra * 2 * Rb) allows for precise frequency adjustments using the adjustable resistors.

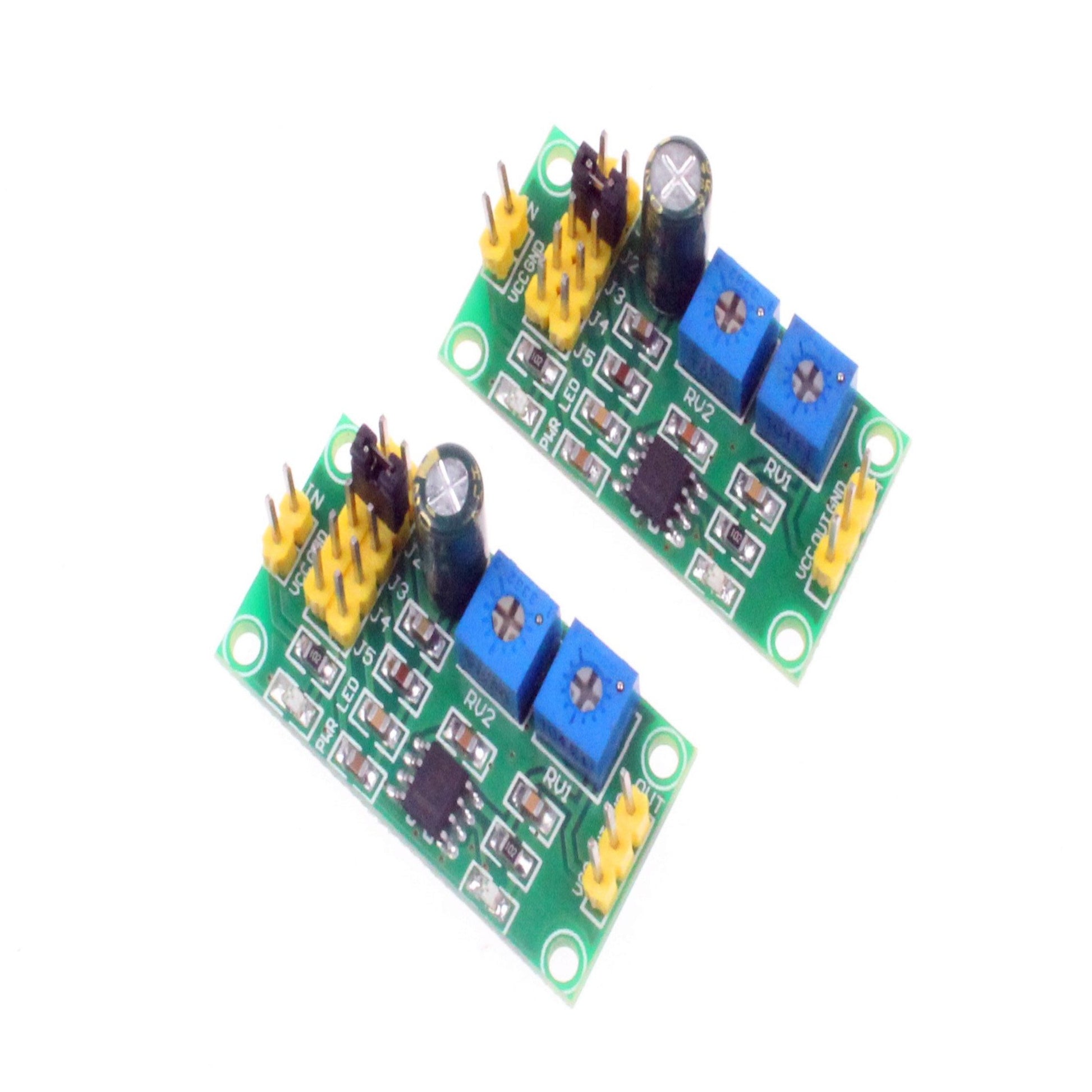

Included in the package are two NE555 Signal Generator Modules, giving you the power to create and experiment with various signal types. Elevate your electronic projects with this essential tool that combines functionality, ease of use, and adaptability. Perfect for educational purposes, prototyping, and more!
