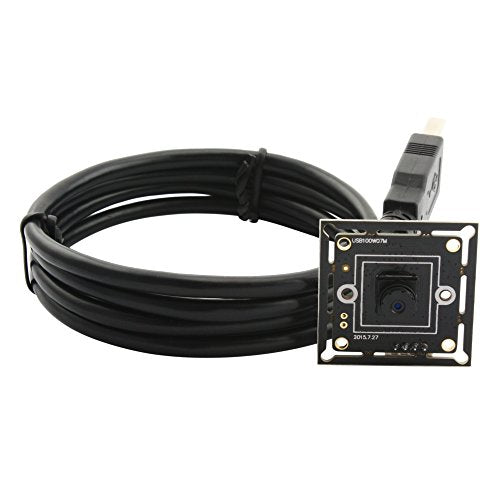

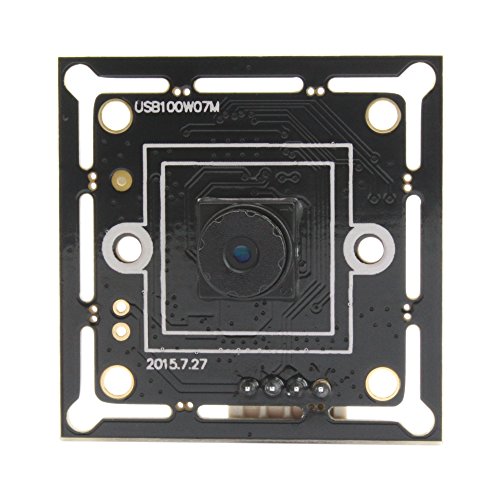

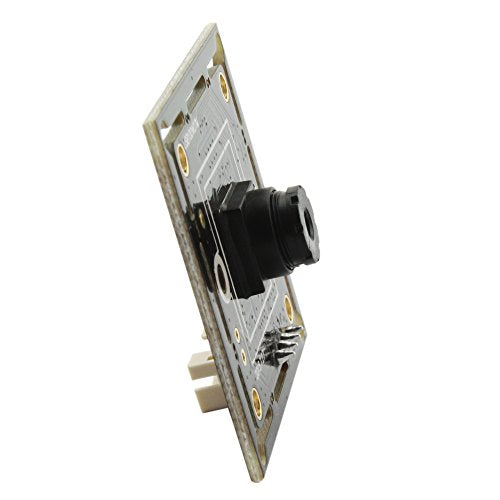

-USB100W07M-MHV45 is a 720P USB2.0 OmniVision OV9712 Color CMOS Sensor USB Camera Mini Size (32*32/26*26mm) with M7 45degree wide angle Lens Specification: Sensor OV9712 Lens Size 1/4 inch Pixel Size 3.0um X 3.0um image area 3888m x 2430m Max. Resolution 1280(H)X720(V) Compression format MJPEG / YUV2YUYV Resolution & frame MJPEG320X240@ 30fps, 352X288@ 30fps640X360@60fps,640X480@ 30fps800X600@ 30fps,1280X720@ 30fps YUV 320X240@ 30fps,352X288@ 30fps640X360@30fps,640X480@ 30fps800X600@ 15fps,1280X720@ 5fps S/N Ratio 40dB Dynamic Range 69dB Sensitivity 3.7V/lux-sec@550nm Mini illumination 0. 1lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video ClassUVC Support OTG Protocol USB2.0 OTG AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Standard M7 LENS FOV(D)60 (H)45 Degree LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Power supply DC5V Operating Voltage 120mA~180mA Working current -1070 Working temperature -2085 Board size /Weight 32X32mmCompatible 26X26mm/ about 30g Cable Standard 1M Operating system request Win7 Win8,Mac os, Linux 2.6 or above,Android 4.0 or above
