IRCUT Camera for Raspberry Pi Focusable Camera Module 5MP Webcam Video 1080p OV5642 Sensor for Raspberry Pi/Pi 2/Pi 3

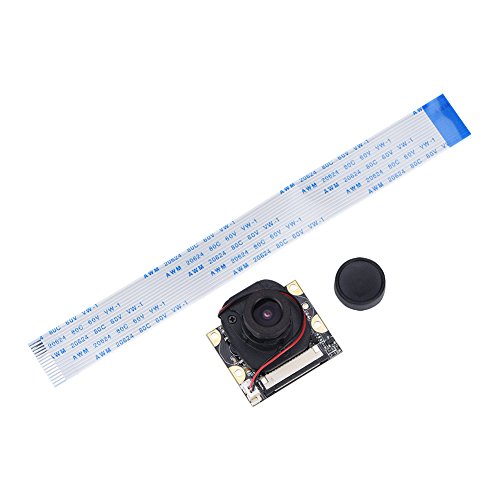

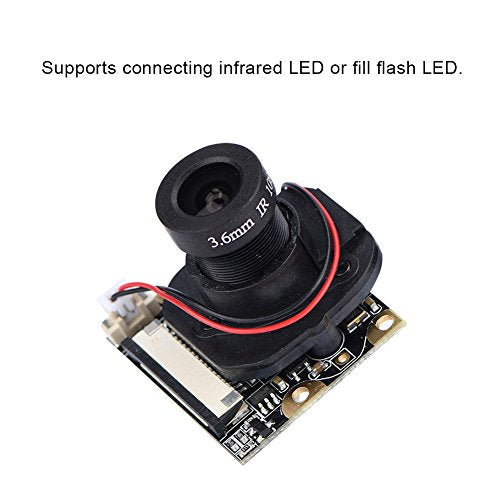

Description: This camera module has built-in IR-CUT which can auto shift filter ensuring better images at the day or night.It is available of external connected infrared LED or fill flash LED. Perfectly fit for Raspberry Pi/Pi 2/Pi 3. Specifications: Condition: 100% Brand New Material: Plastic Color: as Shown in the Picture Pixels: 5 million Sensing Chip: OV5647 CCD Size: 1/4inch Aperture(F): 1.8 Focal Length: adjustable Diagonal Angle: 75(common lens only 72) Sensor Best Resolution: 1080p Video Recording: Support 1080p30, 720p60 and 640x480p60 / 90 video recording Fit : for Raspberry Pi/Pi 2/Pi 3, but need to equip extra connection cable if used for Raspberry Pi Zero Static Picture Resolution: 2592 * 1944 Size: approx. 3.3 x 2.7 x 2.6cm / 1.3 x 1.1 x 1.0in Weight: approx. 21g Package Included: 1 x Camera for Raspberry Pi(infrared LED and Raspberry Pi board not included) 1 x 15cm FFC Cable Mode Setting: 1. Day mode(without extra setting needed) 2. Default Mode: Method 1: Modify the system /boot/config.txt. Input in terminal: Sudo nano/boot/config. TXT Add the following code to the last line: Disable_camera_led = 1 Save, exit and restart, then can enter the night infrared mode. If need to restore normal mode, remove "disable_camera_led=1" then save, exit and restart. Method 2: GPIO control: Using the connecting line to extract the control foot. normal mode: default high or don't connect with connecting line; night vision mode: connect with low level.
