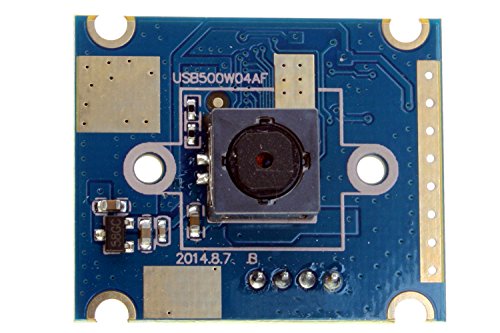

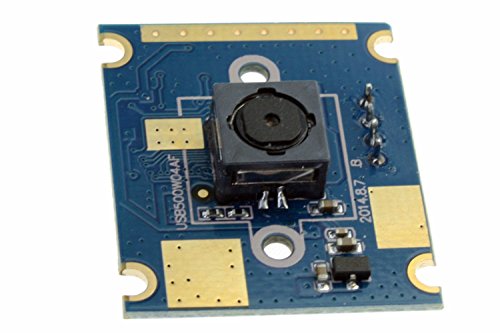

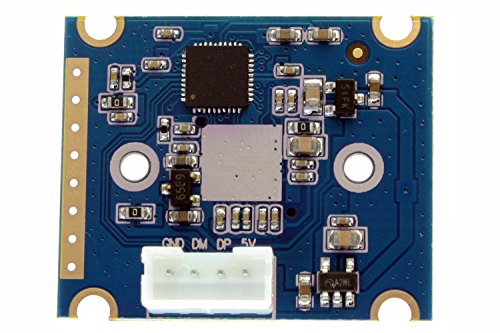

5mp 60 Degree Autofocus USB Camera with Ov5640 Sensor for Linux/Android/mac/Windows Pc Webcam
5mp 60 Degree Autofocus USB Camera with Ov5640 Sensor for Linux/Android/mac/Windows Pc Webcam
Couldn't load pickup availability
Why we choose MJPEG USB Camera? Choose "MJPEG" final purpose is to reduce data stream, improve the video frame, so that the video will more smooth and occupy less bandwidth. Such as 1megapixel common camera,YUV format only have 10fpswhile MJPEG usb camera can up to 30fps. Most Linux USB port device is USB2.0, becuase bandwidth limited, can not receive YUV data stream, so that need to choose the MJPEG data stream. Common USB PC camera do not have MJPEG DSP, even those support MJPEG but can not work with USB2.0 yet. -USB500W04AF-A60 is a industrial high level 5megapixel autofocus USB Camera for housing or all kinds of device developing. Specification: 5Megapixel 2592X1944 resolution Sensor 1/4" CMOS OV5640 5.0megapixel, Max. 2592(H)x1944(V)pixels Picture format MJPEG or YUY2 optional/USB Protocal USB2.0 HS/FS Auto exposure AEC Support/Auto white blance AEB Support Performance: 2592 (H) x 1944 (V) pixels MJPEG 15fps YUY2 3fps 2048 (H) x 1536 (V) pixels MJPEG 15ps YUY2 3fps 1600 (H) x 1200 (V) pixels MJPEG 15fps YUY2 3fps 1920 (H) x 1080 (V) pixels MJPEG 15fps YUY2 3fps 1280 (H) x 1024 (V) pixels MJPEG 15fps YUY2 7.5fps 1280 (H) x 720 (V) pixels MJPEG 30fps YUY2 7.5fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 15fps 800 (H) x 600 (V) pixels MJPEG 30fps YUY2 30fps 640 (H) x 480 (V) pixels MJPEG 30fps YUY2 30fps Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB Night vision optional, can choose IR board 5V power voltage DC 5V/current 150mA/work temperature DEGREES(-20~70) Support OS "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"
