Introducing our high-performance Solar Panel Connectors, designed to optimize the efficiency of your solar energy system. These connectors facilitate seamless parallel connections between solar panels, ensuring that your voltage configuration aligns perfectly with both On-Grid and Off-Grid solar setups.
Crafted for durability and ease of use, our connectors feature a robust panel-receptacle interface that connects effortlessly to inverters, combiner boxes, or branch cables. The installation process is straightforward, requiring minimal tools thanks to the screw thread or perforated plate mounting with a secure locknut.
Key Specifications:
- **Current Rating**: 30A, compatible with cables of 2.5mm (AWG14), 4mm (AWG12), and 6mm (AWG10).
- **Mounting Type**: Panel Mount for versatile installation options.
- **Termination Method**: Crimp for reliable connections.
- **Thread Size**: M12 for a secure fit.
- **Pin Dimension**: 4.0mm for optimal conductivity.
- **Insulation Material**: Constructed from high-quality PPO/PC/ABS for enhanced durability.
- **Contact Material**: Tin-plated for superior conductivity and corrosion resistance.
Safety and performance are paramount, with a rated voltage of TUV 1000V DC and UL 600V DC, ensuring compliance with stringent industry standards. The connectors boast a test voltage of TUV 6000V AC and UL 2200V DC, with a contact resistance of just 0.5m? and an insulation resistance of 500M?. Designed to withstand harsh outdoor conditions, they feature an IP67 rating for water and dust protection.

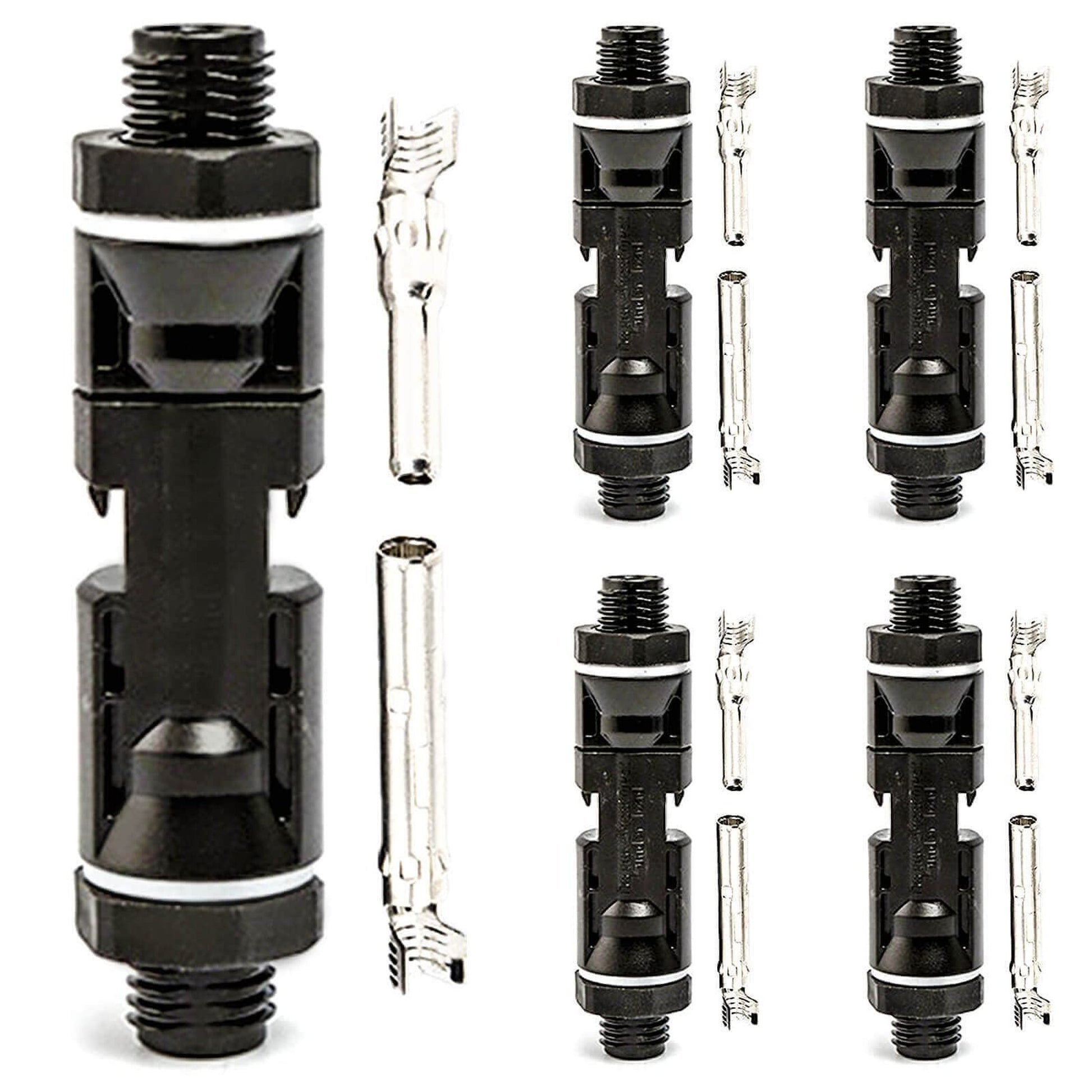

Each package includes 5 pairs of 30A panel connectors, complete with copper inner cores, making it the perfect choice for solar enthusiasts looking to enhance their energy systems. Elevate your solar setup with our reliable and efficient Solar Panel Connectors today!
